¤ These properties are a record of conditions in place when the Archived Job was created.

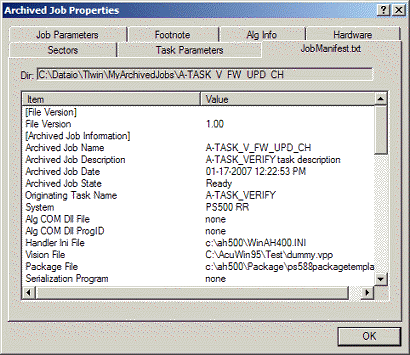

The Archived Job Properties dialog has seven tabs.
Lists the Job settings sent to the programmers when an Archived Job is run.
Information specific to the device being programmed.
Lists the required adapter and actuator plate, and the algorithm used for the Archived Job.
Lists the hardware board IDs in the programmers used when the Archived Job was created. This information is compared to the programmers in use when the Archived Job is run at a later time. The boards are listed by configurations; therefore, all sites with the same board IDs are represented by the same configuration.
Lists the sector settings used when the Archived Job was created.
Lists the settings in the Task that the Archived Job was created from.
Lists information used by TaskLink for validating and/or restoring various components when the Archived Job is run, as well as verifying the integrity of all of the files in the Archived Job. The information also serves as a historical record of the versions of various components and names of files that were used in the creation of the Archived Job.
