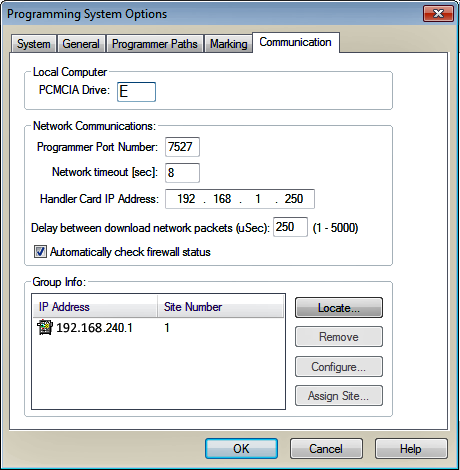

PCMCIA Drive: The letter of the PC-card drive on the local computer.
Programmer Port Number: Enter the network port number for locating programmers. Port 7527 was set on the programmer compact Flash card from the factory. More.
Network timeout (sec): The length of time, in seconds, to wait for a response from each programmer on the network.
Handler Card IP Address: The IP address of the network card in the Handler Computer. This IP address is set in the factory but can be modified in the field by using Windows Start > Control Panel > Network and Internet > Network and Sharing Center, then select the desired PS network (Windows 7).
Note: If there are two network cards in the Handler Computer, select the network card for programmer communication.
Locate: Searches for available programmers on the selected programmer port number.
Remove: Removes highlighted programmer from the Group Info list.
Configure: Launches the Network Configuration Wizard which steps through the process of specifying network settings, such as IP address and Gateway, for the selected programmer. Using the Wizard allows you to reconfigure the network settings of the selected programmer on the fly. Instructions.
Assign Site: Launches the Assign Site Number dialog that allows you to associate the selected programmer with the correct physical location of the FlashCORE programmer on the work surface. For more, see: Assigning Programmer Site Numbers
• • •
