View Programmer Network Settings



To view the network settings on your programmer:

  1. Insert a PC Card (with Administrative privileges) into your FlashPAK.
  2. On the programmer control panel press Menu until the Main Menu appears (Job is the first item on the Main menu).
  3. Select System > Network. The network parameters are displayed.

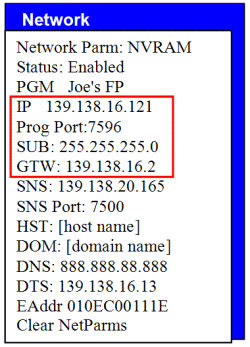

Network parameters from a FlashPAK are shown here.



In order to locate your networked programmers, the IP (IP address), Prog Port (Programmer Port Number), SUB (Subnet mask), and GTW (Gateway) settings on the programmer must be valid. Check with your IS Department for valid settings.

If the settings are not valid:

Create a new network configuration card to reconfigure your programmer.



===
