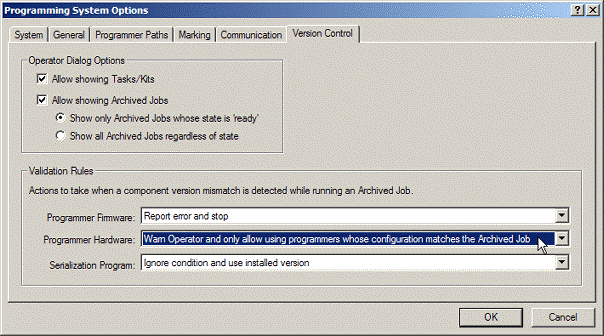

If the programmer hardware validation rule is set to:
"Warn Operator and only allow using programmers whose configuration matches the Archived Job"
only those programmers that match the configurations of programmers in use when the Archived Job was created can be used when the Archived Job is run at a later time. For a programmer to be in use, a device must be successfully programmed on it during Archived Job creation.
Therefore, when creating an Archived Job, program a device on every programmer board configuration you intend to use when running the Archived Job in the future.
Note: To determine the programmer board configurations of the PS Series FlashCORE system, click Tools > View Programmer Information from TaskLink’s main screen.
If you are unsure which programmer board configurations will be used in future runs of an Archived Job, program at least one device successfully on every programming site when you create the Archived Job. In this way, the programming board configurations for all sites are included in the record of components used in the Archived Job.
• • •
