How to Add Operator Messages

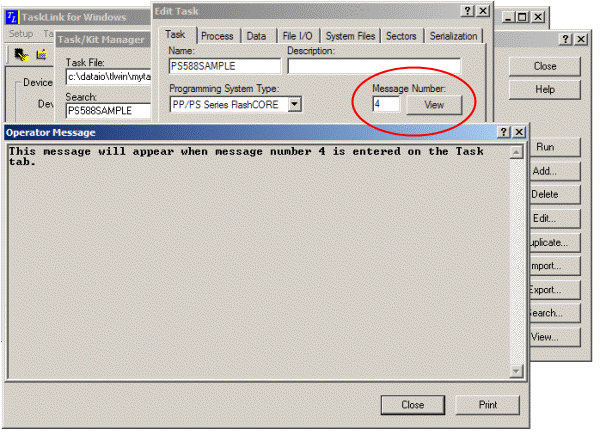

Use the Message Editor (Task > Message Editor) to write or edit informative messages that are displayed when the Job is loaded. In the Task editor, you specify the number of the message that is displayed. You can preview the message by clicking View.

$PSFC_Images\psmessageexample.gif$

To write or edit a message

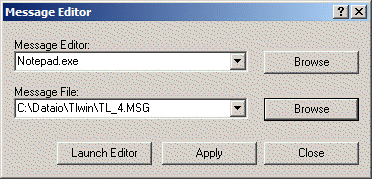

Select Task > Message Editor to open the Message Editor dialog.

$PSFC_Images\messagefour.gif$

Select the Message Editor (for example, WordPad or Notepad) for writing or editing messages.
Select the Message File you want to write or edit.
Click Apply.
Click Launch Editor to open the specified message editor and message file.
Once in the message editor, assign a number using this format:
~ followed by four digits

Examples of message numbers: ~0001 ~0012 ~0254 ~3578

Add a carriage return and then type the message.

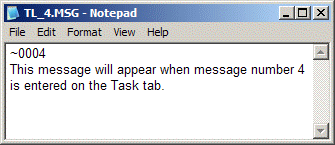

Eexample of a message:

$PSFC_Images\samplemessage.gif$

• • •
